Type: AC-Low-51mm AC-Supper Low
Capacity Q kg: 2000 1000
Min. fork height h mm: 51 35
Max. fork height h1 mm: 165 90
Timoni mm: φ180x50 φ160x50
Load roller Tandem mm: φ50x70 φ34x58
Overall width Fork mm: 540/685/838 530/685
Length Fork I mm: 1150/1220 1120
Low handling
The pallet has been created for handling loads as low boxes etc.
|
|
|
Type: AC
Low handling
Capacity Q kg: 1500
Min. fork height h mm: 85
Max. fork height h1 mm: 85-170-210
Steering mm: φ200x50
Roller Load Single mm: φ78x70
Load roller Tandem mm: φ65x60
Size fork e * s mm: 160x50
Overall width forks mm: 540 685
Fork length I mm: 1100/1150/1220
Observations Normal transfer mm: 85mm-170mm, 2500kg
Comments for transverse transport mm: 170mm-210mm, 1500kg
Pallet scroll side
|
|
|
Type: AC20R
Capacity Q kg: 2000
Diameter Reel mm: 400 / 600-600 / 800-800 / 1200-1200 / 1600
Overall length forks B mm: 760/850/1000/1150
wheel mm: φ200x50
Load roller Tandem mm: φ82x70
Fork length l mm: 800/900/1000/1100/1150/1220
truck rolling
for freight transport such as rollers, cable reels etc.
|
|
|
Type: ACF20
Capacity Q kg: 2000
Min. fork height h mm: 85/75
wheel mm: φ200x50
Load roller Tandem mm: φ80X70
Overall width Fork mm: 520/540/685
Fork length l mm: 800/900/1150
Quick lifting Paletorforo
Lift to maximum height: 5 times
supported hydraulic
All axes Grease
Optional payable can adapt various kinds of wheels
|
|
|
Type: AM 22
Capacity Q kg: 2200
Min.ypsos fork h mm: 83
Steering mm: φ160x50
Load roller Tandem mm: 60x82
Overall width Fork mm: 520/680
Fork length I mm: 1165
High strength pallet mechanical parts
Extremely quiet operation
Unique operating element
versatile machine
Robust and durable
Quick lifting as default mode
Optional fast lift (to 120 kg) from the ground with three lift stairs
Excellent flexibility even in the most confined spaces
|
|
|
Type: CBG QL20H (quicklift)
Load capacity Q kg: 2500 2000
Steering: φ200x50 mm / φ180x50 φ180x50 / φ200x50
Load roller Tandem mm: φ80X70 φ80X70
Overall width Fork mm: 550/685 550/685
Fork length I mm: 800/900/1150 800/900/1150
Built-in overload valve
Made from high quality steel
It features a completely sealed hydraulic oil pump
Made with specifications «EN 1757-2»
Optional: The wheels can be changed to larger
|
|
|
Type: ACZ20H galvanized, ACZ20L galvanized
Load capacity Q kg: 2000 2000
Min. fork height h mm: 85 75
Max. fork height h1 mm: 200 190
Steering mm: φ200x50 φ180x50
Load roller Tandem mm: φ80x70 φ74x70
Overall width Fork mm: 520/540/685
Fork length I mm: 1100/1150
Fully galvanized housing
Completely sealed hydraulic pump nickle
Pressure relief valve
Tandem nylon Load kylindrous & timonis
Optional: wheels can be changed to any kind
|
|
|
Type: DF20 DF30
Capacity Q kg: 2500 3000
Min.ypsos fork h mm: 85 85
Steering mm: φ200x50 φ200x50
Load roller Tandem mm: φ80x70 φ80x70
Overall width Fork mm: 450/520/550/685
Fork length I mm: 800/900/1000/1100/1150/1220
Optional: The wheels can be changed to larger
|
|
|
Item/Type L Series
Capacity Q kg: 2500/3000
Steering mm: φ200x50
Load roller Tandem mm: φ74x70
Overall width Fork mm: 550/685
Fork length I mm: 800/900/1150
There preventing operator protection.
Completely sealed hydraulic pump.
Fully adjustable road push the forks
Grease the key points
Optional: The wheels can be changed to larger
|
|
|
Type: HLT10/HLT15
Capacity Q kg: 1000/1500
Min.ypsos fork h mm: 85
Max.ypsos fork h1 mm: 800
Size fork exs mm: 162x50
Length of fork l mm: 1140 1100
Overall Length fork (adjust / fixed) b5 mm: 520/680
N.W. kg 105/112 118/125
Cylinders forks mm: φ75x50
Wheels mm: φ150x50
Klovou Dimensions mm: 193x58x72
Pcs / 20 'container mm: 193x74x72
|
|
|
Load capacity: 1000/1500 kg
Fork length: W540 680
Fork length (L): 1150 1500
in.ypsos fork (H): 85 85
Max.ypsos fork: 800 800
Front wheels: PU / Nylon 80 * 50
Rear Wheels: PU / Nylon 180 * 50
Net Weight: 110 125
|
|
|

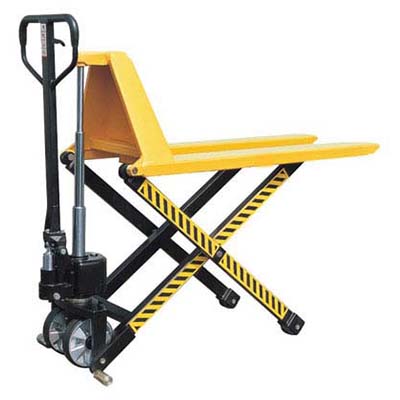

Type: SLT10
Load capacity Q Kg: 1000
Min. fork height h mm: 85
Max. fork height h1 mm: 800
Size fork e*s mm: 160x50
Overall fork width b5 mm: 540/680
length-pins l mm: 1170
pin cylinder mm: φ78x60
wheels mm: φ200x50
weight Kg: 127/138
The DLT-10 model comes with battery and built-in smart charger with cable.
Provides quick lifting operation system.
|
|
Type: SLT10
Load capacity Kg: 2000
Dimensions: 1150/1800/2000x550 2000kg
|
|
